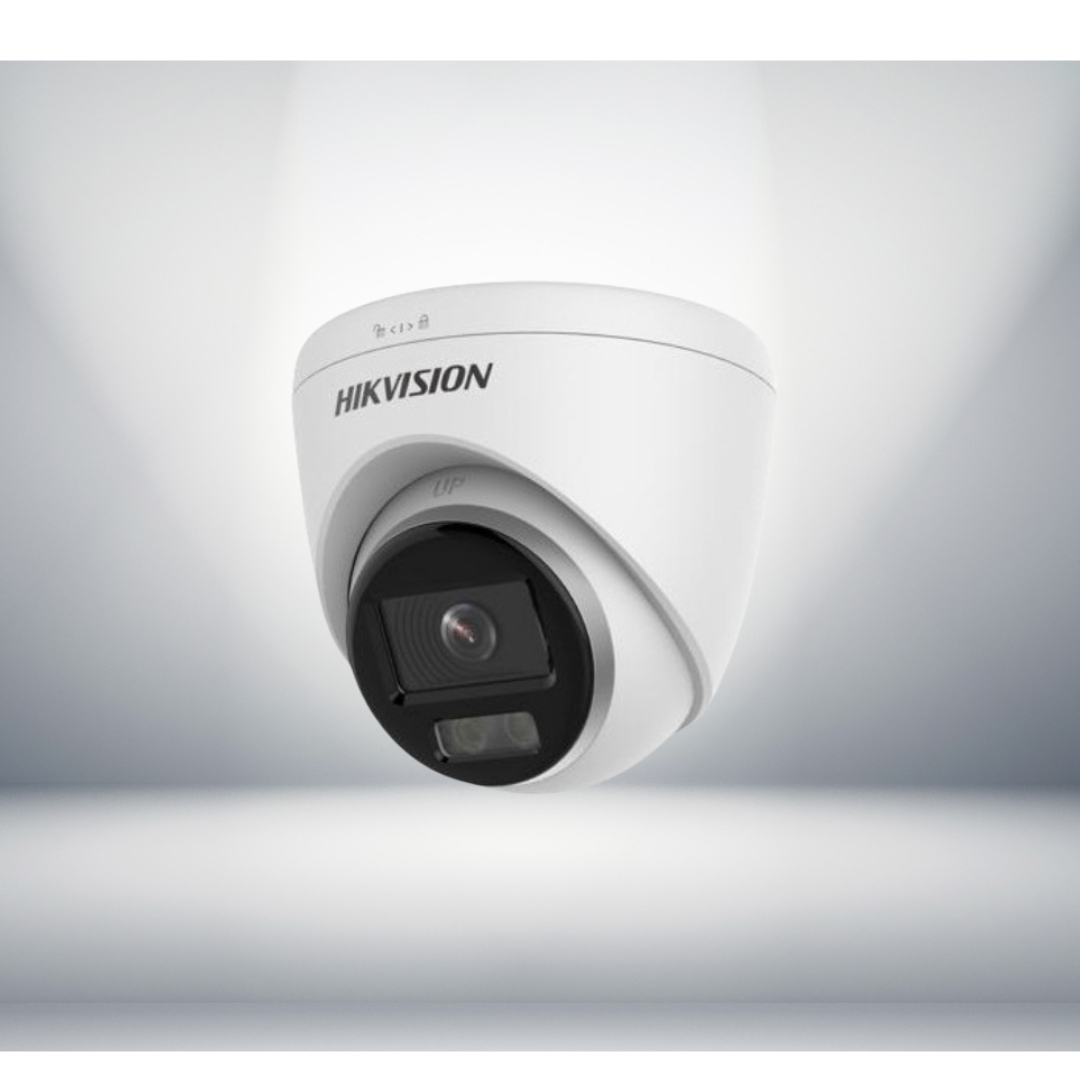

MP ColorVu Indoor Fixed Turret Camera
Camera | |
Image Sensor | 2 MP CMOS |
Signal System | PAL/NTSC |
Resolution | 1920 (H) × 1080 (V) |
Frame Rate | TVI: 1080p@25fps/30fps CVI: 1080p@25fps/30fps AHD: 1080p@25fps/30fps CVBS: PAL/NTSC |
Min. Illumination | 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light |
Shutter Time | PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s |
Lens | 2.8 mm, 3.6 mm, 6 mm Fixed Lens |
Field of View | 2.8 mm, horizontal FOV: 98°, vertical FOV: 51°, diagonal FOV: 115° |
Lens Mount | M12 |
Light Alarm | Solid Light Alarm (White Light) |
WDR (Wide Dynamic Range) | Digital WDR |
Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° |
Menu | |
White Light | Auto/Off |
Image Mode | STD/HIGH-SAT/HIGHLIGHT |
AGC | Yes |
Day/Night Mode | Color |
White Balance | Auto/Manual |
AE (Auto Exposure) Mode | DWDR, BLC, HLC, Global |
Noise Reduction | 3D DNR/2D DNR |
Language | English |
Function | Brightness, Mirror, Sharpness, Anti-Banding, Smart Light |
Interface | |
Video Output | Switchable TVI/AHD/CVI/CVBS |
General | |
Operating Conditions | -40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing) |
Power Supply | 12 VDC ± 25% |
Consumption | Max. 2.4 W |
Material | Plastic |
White Light Range | Up to 20 m |
Communication | HIKVISION-C |
Dimension | Φ 85.02 mm × 81.25 mm (Φ 3.35' × 3.2') |
Weight | Approx. 161 g (0.36 lb) |
